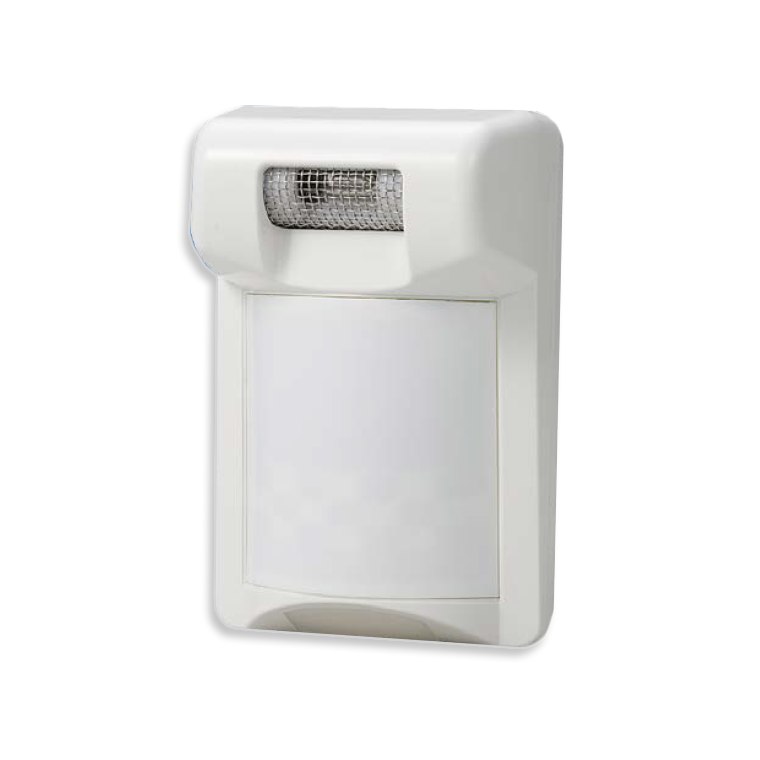

FP-2500E - Flammedetektor / IR-detektor (1-10M avstand)

Art. nr: 13504
Logg inn for å handle

FP-2500E - Flammedetektor og IR-detektor med 10 meters rekkevidde.

Flammedetektorn kan brukes for å alarmere om en flamme oppstår eller om en person detekteres eller om både en person detekteres og samtidigt en flamme detekteres innen en viss detekteringstid. Når enheten detekterer noe av dette så veksles en relekontakt i enheten.

Info:

A combination UV flame sensor and wide-angle PIR with up to 10m flame and intrusion detection for safer indoor protection of your premises.

Features

High sensitivity ultraviolet flame sensor + wide angle intrusion PIR

Dual ouput modes; AND/OR

Forced output mode following continued flame detection

Alarm memory function

Multi-zone PIR technology provides pet immunity up to 20kg (40lbs)

PIR area adjustment

Detection timer

Data:

Model                FP-2500E

Detection system                       Ultraviolet rays detection (185~260nm)

Detection distance                     10m (33ft) max. from 7cm (2.75") flame

Detection area angle                 Approx. 120 degrees conically

Detection setting                        Detection timer (1sec, 3sec)

Detection sensitivity (H: 100%, L: 50%)

* Detection sensitivity can be set in "Individual" ("OR") mode.

* H: 100% is fixed in "AND" mode.

Alarm LED (RED)                         Part of flame sensor

• Lighting at alarm (detection time + off delay Approx. 2 sec.)

• Blinking (3 min) and Lighting (47 min) at memory

Detection system                       Passive Infrared

Detection area                            Wide Angle 10m (33ft) Max. 29 pairs

Detection area angle adjustment                     3 steps

Alarm LED (RED)                         Part of passive sensor

• Lighting at alarm (one shot, Approx. 2 sec.)

• Blinking (3 min) and Lighting (47 min) at memory

• Lighting at trouble.

Power supply 10-30VDC (non-polarity)

current consumption                20mA Max.

Alarm output

Individual mode

Flame sensor output (From alarm terminal 1)

• Dry contact relay (Semi-Conductor) (N.O./N.C. selectable)

• Contact operation: Detection time + off delay.(Approx.2sec.)

• Contact capacity :30V (AC/DC) 0.25AMax.(resistive load)

Passive sensor output (From alarm terminal 2)

• Dry contact relay (Semi-Conductor) (N.O./N.C. selectable)

• Contact operation: One shot (Approx. 2 sec.)

• Contact capacity: 30V(AC/DC) 0.25AMax.(resistive load)

AND mode

Alarm signal outputs from alarm terminal 1、2、 when both sensors detect during the selected time.

• Dry contact relay (Semi-Conductor) (N.O./N.C. selectable)

• Contact operation: Min. 2 sec. (Max. depends on AND mode timer setting)

• Contact capacity: 30V (AC/DC) 0.25A Max.(resistive load)

Tamper output                            Dry contact relay NC

(Activated when the front cover is detached)

Contact capacity: 30V (AC/DC) 0.1A Max. (resistive load)

Alarm memory                            Reset after blinking (3 min) and lighting (47 min)

(Operate flame and passive LED individually)

Ambient temperature range -15°C to +55°C (5°F to +131°F) without condensation

Mounting position                     Indoor wall surface (Ceiling with option attachment “BCW-401”)

Connections    Self-up terminal

Weight              Approx. 120g

Appearance     Resin

FP-2500E - Flammedetektor og IR-detektor med 10 meters rekkevidde.

Flammedetektorn kan brukes for å alarmere om en flamme oppstår eller om en person detekteres eller om både en person detekteres og samtidigt en flamme detekteres innen en viss detekteringstid. Når enheten detekterer noe av dette så veksles en relekontakt i enheten.

Info:

A combination UV flame sensor and wide-angle PIR with up to 10m flame and intrusion detection for safer indoor protection of your premises.

Features

High sensitivity ultraviolet flame sensor + wide angle intrusion PIR

Dual ouput modes; AND/OR

Forced output mode following continued flame detection

Alarm memory function

Multi-zone PIR technology provides pet immunity up to 20kg (40lbs)

PIR area adjustment

Detection timer

Data:

Model                FP-2500E

Detection system                       Ultraviolet rays detection (185~260nm)

Detection distance                     10m (33ft) max. from 7cm (2.75") flame

Detection area angle                 Approx. 120 degrees conically

Detection setting                        Detection timer (1sec, 3sec)

Detection sensitivity (H: 100%, L: 50%)

* Detection sensitivity can be set in "Individual" ("OR") mode.

* H: 100% is fixed in "AND" mode.

Alarm LED (RED)                         Part of flame sensor

• Lighting at alarm (detection time + off delay Approx. 2 sec.)

• Blinking (3 min) and Lighting (47 min) at memory

Detection system                       Passive Infrared

Detection area                            Wide Angle 10m (33ft) Max. 29 pairs

Detection area angle adjustment                     3 steps

Alarm LED (RED)                         Part of passive sensor

• Lighting at alarm (one shot, Approx. 2 sec.)

• Blinking (3 min) and Lighting (47 min) at memory

• Lighting at trouble.

Power supply 10-30VDC (non-polarity)

current consumption                20mA Max.

Alarm output

Individual mode

Flame sensor output (From alarm terminal 1)

• Dry contact relay (Semi-Conductor) (N.O./N.C. selectable)

• Contact operation: Detection time + off delay.(Approx.2sec.)

• Contact capacity :30V (AC/DC) 0.25AMax.(resistive load)

Passive sensor output (From alarm terminal 2)

• Dry contact relay (Semi-Conductor) (N.O./N.C. selectable)

• Contact operation: One shot (Approx. 2 sec.)

• Contact capacity: 30V(AC/DC) 0.25AMax.(resistive load)

AND mode

Alarm signal outputs from alarm terminal 1、2、 when both sensors detect during the selected time.

• Dry contact relay (Semi-Conductor) (N.O./N.C. selectable)

• Contact operation: Min. 2 sec. (Max. depends on AND mode timer setting)

• Contact capacity: 30V (AC/DC) 0.25A Max.(resistive load)

Tamper output                            Dry contact relay NC

(Activated when the front cover is detached)

Contact capacity: 30V (AC/DC) 0.1A Max. (resistive load)

Alarm memory                            Reset after blinking (3 min) and lighting (47 min)

(Operate flame and passive LED individually)

Ambient temperature range -15°C to +55°C (5°F to +131°F) without condensation

Mounting position                     Indoor wall surface (Ceiling with option attachment “BCW-401”)

Connections    Self-up terminal

Weight              Approx. 120g

Appearance     Resin
