7403/INOX - Porttelefon med kodepanel til V2P systemet

Art. nr: 07963
Logg inn for å handle

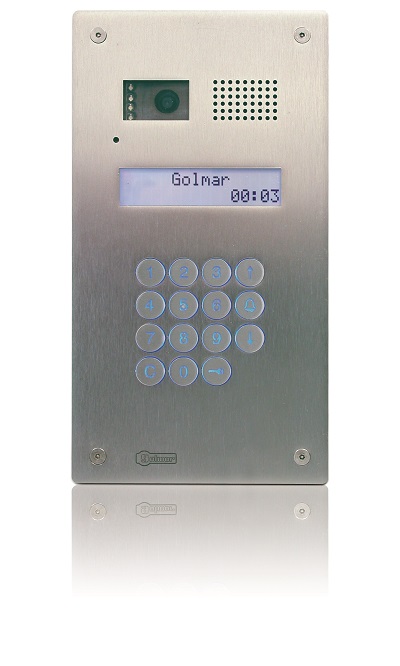

7403/INOX - Porttelefon med kodepanel  & Fargekamera til V2P systemet

Porttelefonen passer vårt V2P system. Kodepanel er et vandal sikkert kodepanel. Fronten er laget i 2,5 mm tykk ANSI 304 rustfritt stål. Kodepanelet er behandlet for å unngå fingeravtrykk. Selve kodetastaturet er i rustfrittstål med blått bakgrunnslys. Stort 2 x 16 bias opplyst LCD display. Moneringsboks finnes i metall (ikke inkludert) med theft protected stoppers. Finnes med Norsk tekst. Strømforsyning følger med.

Data:

- Stainless steel weatherproof keypad with blue illumination.
- Large 2 x 16 bias lighted LCD display.
- 5mm. thick polycarbonate camera window and LCD protector.
- Security screws with special key.
- Requires CE-7601 embedding box (not included).
- Includes FA-Plus power supply and CV-14/DC lock release
- Adjustable pan and tilt CCD colour camera with electronic iris and light emitters for night vision.
- Built in video transmitter module which allows video transmission over either twisted pair or coaxial cable.
- Removable terminal connector for easy wiring.
- Privacy on audio, video and door open progresses.
- Acoustic signals at the door panel to confirm the system status (call is in progress, system is busy, lock is activated).
- Handset hang recognition which removes busy channel fixed times.
- Easy system programming through the keypad or by using a computer.
- Transmission of the repertory content to other door panels through the installation wires.
- Programmable lock release activation time.
- Two calling methods: direct entry of the apartment code or by searching the tenant name in the repertory.
- Four codes access control of four digits each. The third code can be temporally disabled. The last code (panic code) sends an alert message to the concierge unit.
- Cyclic messages with instructions for use, time, user text (i.e. building or street names) and system status are shown in the display.

Dimensions:

External: 155(W) x 290(H) mm.
Embedded: 137(W) x 272(H) x 60(D) mm.

7403/INOX - Porttelefon med kodepanel  & Fargekamera til V2P systemet

Porttelefonen passer vårt V2P system. Kodepanel er et vandal sikkert kodepanel. Fronten er laget i 2,5 mm tykk ANSI 304 rustfritt stål. Kodepanelet er behandlet for å unngå fingeravtrykk. Selve kodetastaturet er i rustfrittstål med blått bakgrunnslys. Stort 2 x 16 bias opplyst LCD display. Moneringsboks finnes i metall (ikke inkludert) med theft protected stoppers. Finnes med Norsk tekst. Strømforsyning følger med.

Data:

- Stainless steel weatherproof keypad with blue illumination.
- Large 2 x 16 bias lighted LCD display.
- 5mm. thick polycarbonate camera window and LCD protector.
- Security screws with special key.
- Requires CE-7601 embedding box (not included).
- Includes FA-Plus power supply and CV-14/DC lock release
- Adjustable pan and tilt CCD colour camera with electronic iris and light emitters for night vision.
- Built in video transmitter module which allows video transmission over either twisted pair or coaxial cable.
- Removable terminal connector for easy wiring.
- Privacy on audio, video and door open progresses.
- Acoustic signals at the door panel to confirm the system status (call is in progress, system is busy, lock is activated).
- Handset hang recognition which removes busy channel fixed times.
- Easy system programming through the keypad or by using a computer.
- Transmission of the repertory content to other door panels through the installation wires.
- Programmable lock release activation time.
- Two calling methods: direct entry of the apartment code or by searching the tenant name in the repertory.
- Four codes access control of four digits each. The third code can be temporally disabled. The last code (panic code) sends an alert message to the concierge unit.
- Cyclic messages with instructions for use, time, user text (i.e. building or street names) and system status are shown in the display.

Dimensions:

External: 155(W) x 290(H) mm.
Embedded: 137(W) x 272(H) x 60(D) mm.
