AVN305 - 1,3 Megapiksel - POE, IP66 (Fast linse 3.8mm)

Bilde mangler
    • Art. nr: 107993
    På lager: Utgått produkt. Gå til erstattende produkt

    Avsluttet produkt, erstattet av AVM2201 - Mini bullet - 2 Megapiksel, PoE (Fast 3.8mm)

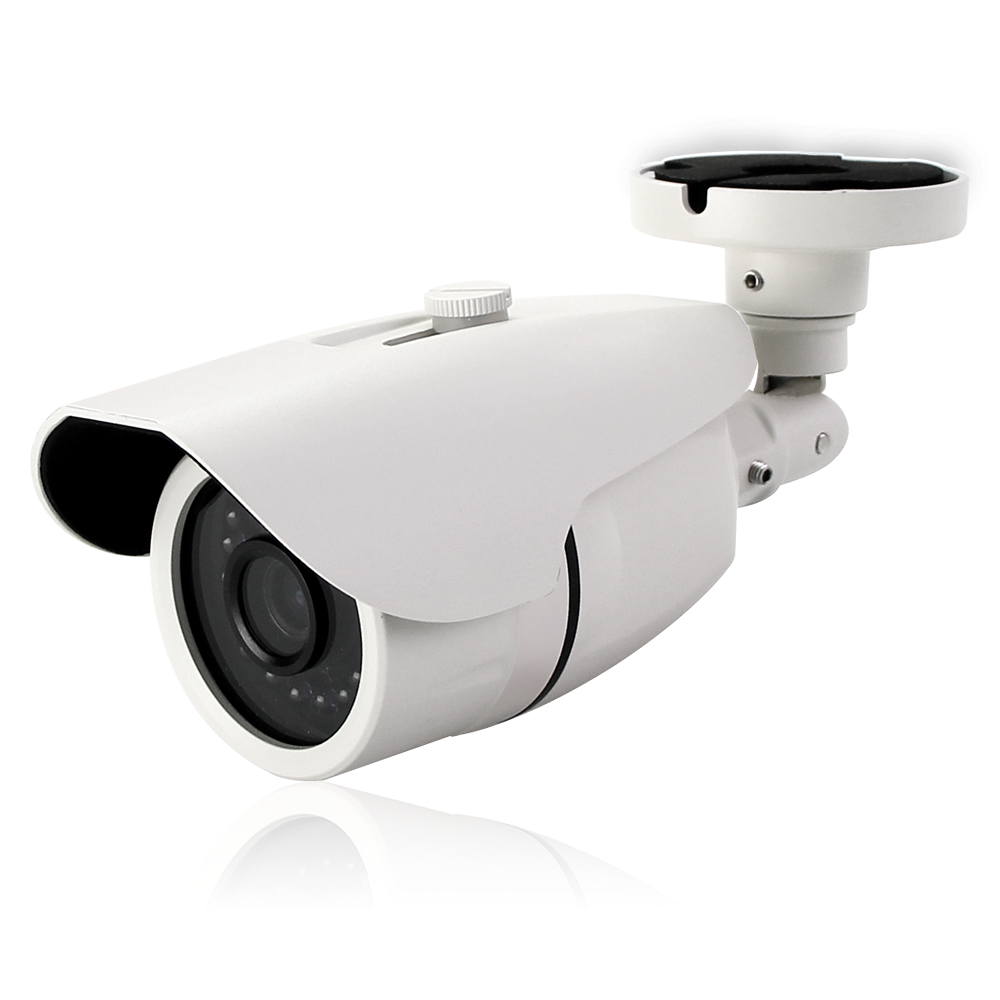

    AVM305A er et utendørskamera med 1,3 Megapiksel. Kamera har IR-lys som når 20 meter i mørker. Dette er ett POE-kamera som gjører det mulig å ha strømforsyning til kamera gjennom samme nettverkskabel som lyd og bilde går igjennom.

    Du kan se på kamera direkte på din PC eller i din mobil/surfebrett. Kamera har ON-VIF standard.

    FEATURES

    POE (Power-over-Ethernet) support to eliminate the use of power cables and reduce

    installation costs

    ONVIF ( ) standard supported to simplify system integration

    IR LED built-in for night surveillance up to 20 meters

    IP66 weather-proof case for protection against dust and water, suitable for both indoor

    & outdoor use

    Remote Surveillance

    Fully compatible with iOS and Android devices, and Internet Explorer on

    Windows operating system

    SPECIFICATION

    LAN Port YES

    LAN Speed 10/100 Based-T Ethernet

    Supported Protocols DDNS, PPPoE, DHCP, NTP, SNTP, TCP/IP, ICMP, SMTP, FTP, HTTP,

    RTP, RTSP, RTCP,IPv4, Bonjour, UPnP, DNS,UDP,IGMP, QoS, SNMP

    ONVIF Compatible YES (Profile S)

    Number of Online Users 10

    Security

    (1) Multiple user access levels with password

    (2) IP address filtering

    (3) Digest authentication

    Remote Access

    (1) Internet Explorer on Windows operating system

    (2) 16CH Video Viewer on Windows & MAC operating system

    (3) EagleEyes on iPhone, iPad & Android mobile devices

    Video

    Network Compression H.264 / MPEG4 / MJPEG

    Video Resolution 1280 x 1024 / 1280 x 720 / 640 x 480 / 320 x 240

    Frame Rate 30fps

    Multiple Video Streamaing 4 (H.264, MJPEG, MPEG4)

    General

    Image Sensor 1/ 3” SONY CMOS image sensor

    Min Illumination 1 Lux / F1.5, 0 Lux (LED ON)

    Shutter Speed 1/2 to 1/10,000 sec

    S/N Ratio More than 48dB (AGC off)

    Lens f3.8mm / F1.5

    Viewing Angle 65.4° (Horizontal) / 49.9° (Vertical) / 80.4° (Diagonal)

    IR LED 14 Units

    IR Effective Distance Up to 20 meters

    IR Shift YES

    Smart Light Control YES

    White Balance ATW

    AGC Auto

    IRIS Mode AES

    POE YES (IEEE 802.3af)

    IP Rating IP66

    Operating Temperature -20℃ ~ 40℃

    Power Source (±10%) 12V / 1A

    Current consumption (±10%) 350mA

    Power Consumption (±10%) 5.5W (PoE); 5.5W (PoN); 4.7W (DC Adapter)

    Others

    Mobile Surveillance iOS & Android mobile devices

    Event Notification FTP / Email / SMS

    Digital Pan / Tilt / Zoom YES

    Motion Detection YES

    RTC (real-time clock) YES

    Minimum Web Browsing Requirements

    ‧Intel core i3 or higher, or equivalent AMD

    ‧2GB RAM

    ‧AGP graphics card, Direct Draw, 32MB RAM

    ‧Windows 8, 7, Vista & XP, DirectX 9.0 or later

    ‧Internet Explorer 7.x or later

    *The specifications are subject to change without notice.
