EL4502 + NX3002 - NFC Åpner til GB2/Iplus systemet

Art. nr: 08344
Logg inn for å handle

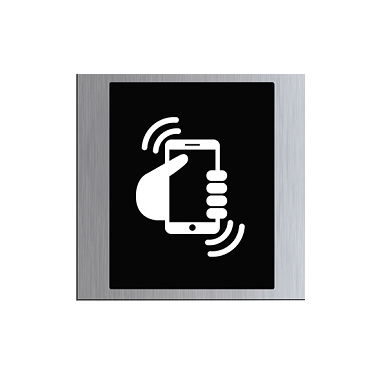

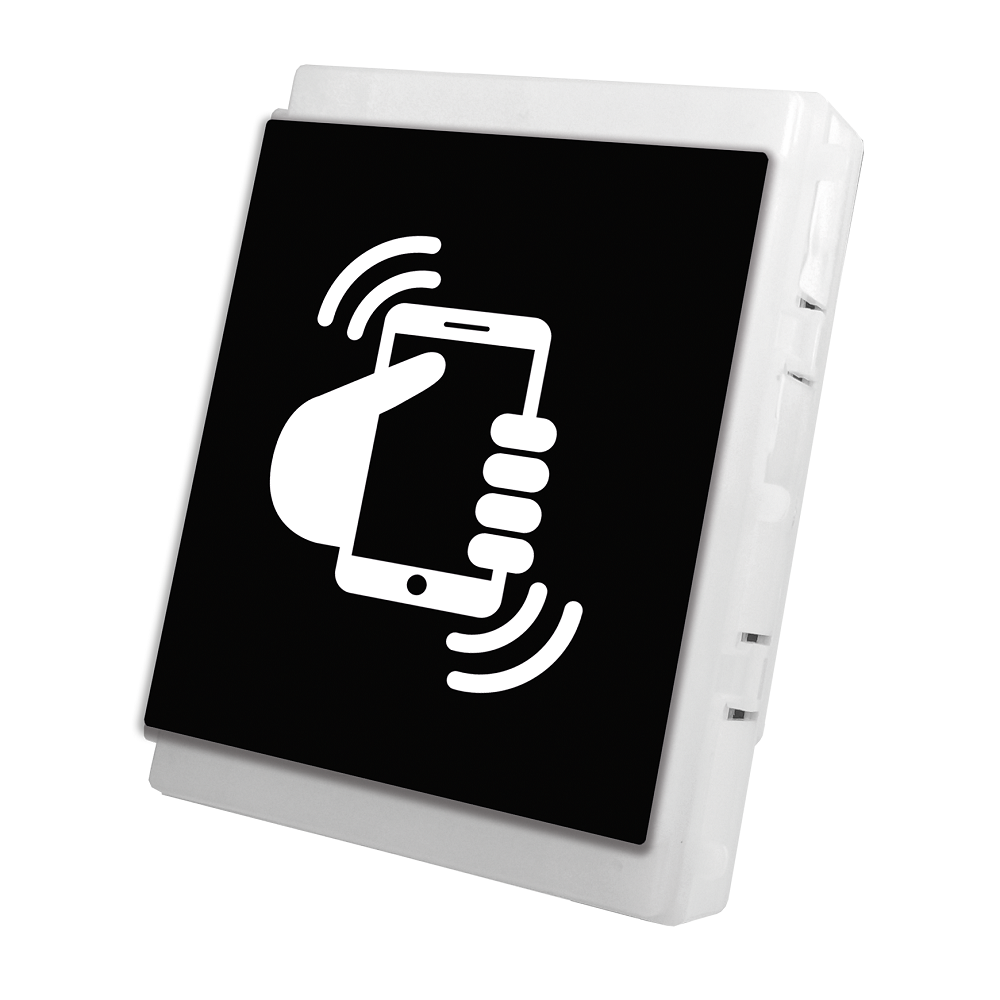

EL4502 / GB2 + NX3002 - NFC Åpner til GB2

EL4502 er en NFC åpner som passer til GB2 systemet. Systemet kan programmeres med DIP-switcher og kan åpnes fra telefoner med NFC eller med NFC kort.

Data:

- Two programming methods: basic, through local dip-switch, or advanced, using Access Control Manager software for Android®.
- Visual and acoustic status indication.
- Removable terminal connector for easy wiring.
- 2 relay outputs (N/C or N/O) with independent remote activation input and panic output (12Vd.c.).
- Programmable activation time (3 to 99 seconds).
- Up to 2,000 user cards, stored in up to 32 user groups.
- Smartphone with NFC technology can operate the access control by using OpenGo software for Android®.
- Three types of user card, depending on the number of uses: permanent till disabled (NFC/US), rechargeable one use (NFC/1U) and programmable multiple use (NFC/MU).
- 12V a.c. or 18 to 24V d.c. power input. It can use the same power supply than the one used for the complete panel, with no dependence on the installation type (except on IP systems)

NB. Bestillingsvare.

EL4502 / GB2 + NX3002 - NFC Åpner til GB2

EL4502 er en NFC åpner som passer til GB2 systemet. Systemet kan programmeres med DIP-switcher og kan åpnes fra telefoner med NFC eller med NFC kort.

Data:

- Two programming methods: basic, through local dip-switch, or advanced, using Access Control Manager software for Android®.
- Visual and acoustic status indication.
- Removable terminal connector for easy wiring.
- 2 relay outputs (N/C or N/O) with independent remote activation input and panic output (12Vd.c.).
- Programmable activation time (3 to 99 seconds).
- Up to 2,000 user cards, stored in up to 32 user groups.
- Smartphone with NFC technology can operate the access control by using OpenGo software for Android®.
- Three types of user card, depending on the number of uses: permanent till disabled (NFC/US), rechargeable one use (NFC/1U) and programmable multiple use (NFC/MU).
- 12V a.c. or 18 to 24V d.c. power input. It can use the same power supply than the one used for the complete panel, with no dependence on the installation type (except on IP systems)

NB. Bestillingsvare.
