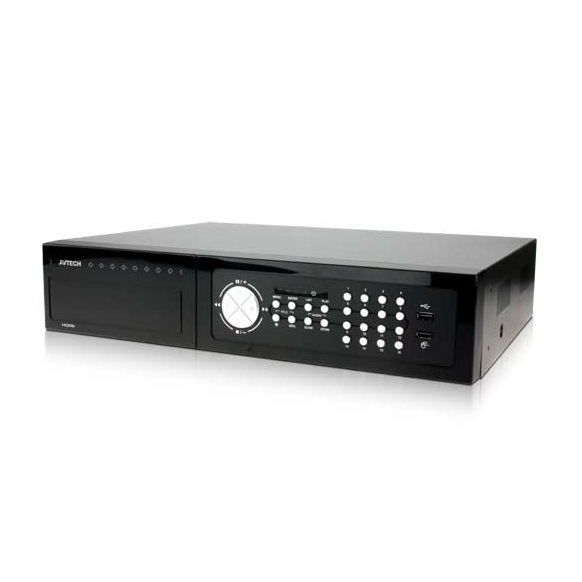

AVZ416 16 Kanals Full HD DVR - 16 Analoge kameraer + IP

Bilde mangler
    • Art. nr: 107081
    Logg inn for å handle

    AVZ416 - 16 Kanals Pentabrid DVR (IP, TVI, 960H, AHD, CVI)

    AVZ416 er en smart "pentabrid" lagringsenhet som kan ha en bred range analoge kameraer og IP kameraer. Lagringsenheten kan brukes med CVI, AHD, 960H, TVI og IP kameraer. Lagringsenheten har 1 VGA og 2 HDMI utganger for tilkoppling av skjermer. Formatet som brukes er H.264. Enheten har har push-status som kan varsle ved video-loss, feil på harddisk og lignende og push video som kan varsle med videomeldning til mobilen.

    Lagringsenheten har også mulighet å koples til skytjenesten Eazy network som er avtech serverløsning som gjør så du slipper åpne porter og lignende.

    Raskere responstid enn IP-basert system

    En annen grunn til å velge HD CCTV systemet er responstiden som er lavere enn et IP-basert system. En IP-kamera har en responstid på 0,5-1 sekunder mens et analogt kamera bare 0,2-0,5 sekunder. Det betyr at fabrikker, produksjoner og lignende der noen overvåker "live" bør velge en HD-CCTV/ITV-system.

    EagleEyes

    Med Avtechs App EagleEyes kan du enkelt vervåke/styre/aktivere innganger & utganger direkte på mobilen. Appen finns tilgjengelig til alle typer av mobiler (Iphone/Android/Blackberry)

    VideoViewer

    Med Avtechs PC/MAC program Videoviewer kan du enkelt overvåke/spille inn/spille opp/styre utganger & innganger og mye mer!

    Harddisk må bestilles separat.

    Functions:

    Free P2P cloud EaZy network.

    - Cloud EaZy Networking available to connect this device to Internet automatically in three steps with our free mobile app, EagleEyes.
    - The “Buddy” feature to share the device access permission to other people.
    - Device login / out notifications reported.

    Push Video & Push Status - Event notification with eagleeyes app.

    - Push Video to send instant notifications for an alarm event when an alarm device is connected to the DVR.
    - Push Status to send instant notifications for system events, such as video loss or HDD data removal.

    External disk for more video storage.

    - eSATA interface built-in to connect a disk array for more video storage.

    Pentabrid video input.

    - 16 channels of IP / TVI / CVI / Analog HD / 960H video input, within which IP channels are up to 12 channels.
    - All channels at 1080P real-time recording.
    - Up to 5MP recording for IP cameras

    Spot monitor.

    - In addition to the main display via the HDMI output, you can assign a secondary display to show live view, call monitor or event monitor.

    Intelligent video analysis.

    - The Smart TVI DVR supports IVS (Intelligent Video System) to set a virtual detection line for people counting, virtual fence, and one-way pass.

    Data:

    Video

    Video System: NTSC / PAL (auto detection)
    Video Compression Format: H.264
    Video Signal: IP / TVI / CVI / Analog HD / 960H
    Video Input: 16 quadbrid channels (IP / TVI / Analog HD / 960H), within which IP channels are up to 12 channels
    Video Input Interface:
    - Analog Mode = Composite video signal 1 Vp-p 75Ω BNC
    - IP Mode: Ethernet, 10/100 Base-T
    Video Output: BNC, VGA (1080P), HDMI - HDMI-1: Up to 3840 x 2160 (4K2K) / HDMI-2: Up to 1920 x 1080 (1080P)
    Video Resolution:
    Analog Mode: 1080P / 720P / QHD / 960H / Frame / Field / CIF
    IP Mode: 2592 x 1944** / 2048 x 1536** / 1920 x 1080 / 1280 x 720/ 640 x 480 / 320 x 240

    Record & Backup

    Max. Recording Rate
    - Analog Mode: Up to 480 IPS @ 1920 x 1080 (16 channels)
    - IP Mode: UP to 360 IPS @ 1920 x 1080 (12 channels)
    Recording Mode: Manual / Timer / Motion / Alarm / Remote.
    Pre-alarm Recording: YES
    Playback Channel: 16CH
    Quick Search: Time / Motion / Alarm search mode
    Backup Device: USB 2.0 drive / Network
    Regular Backup: YES (USB hard drive or FTP)

    Audio

    Audio Input: 8 audio inputs
    Audio Output: 2 Audio output (Mono)

    General

    Hard Disk Storage: 10TB SATA HDD x 3
    SATA Interface: YES
    eSATA Interface: YES (For external disk array connection)
    Image Quality Setting: SUPER BEST / BEST / HIGH / NORMAL
    USB Mouse Control: YES
    Motion Detection Area: 16 × 12 grids per channel
    Motion Detection Sensitivity: 3 adjustable parameters for accurate detection
    Event Notification: Push Video/ Push Status / FTP / E-Mail
    Picture Zoom: 2X digital zoom
    PTZ Control: YES
    Alarm I/O: 8 inputs, 1 output
    RS485 YES
    IR Remote Control: YES (IR receiver built-in)
    Key Lock (Password Protection): YES
    User Level: 4 user levels for different access privilege
    Video Loss Detection: YES
    Camera Title: Supports up to 25 letters
    Video Adjustable: Hue / Saturation / Contrast / Brightness
    Date Display Format: YY/MM/DD, DD/MM/YY & MM/DD/YY
    Daylight Saving: YES

    General

    Power Source (±10%) 19V/3.42A
    Operating Temperature: 10ºC ~ 40ºC (50ºF ~104ºF)
    Operating Humidity: 10% ~ 85%
    Dimensions (mm)***: 432(W) × 90(H) × 326(D)
    Net Weight (kg): 4kg

    Network

    Ethernet: 1000 Base-T. Supports remote control and live view via Ethernet
    Network Protocol: TCP/IP, PPPOE, DHCP and DDNS

    Remote Surveillance from PC

    Compatible Operating System: Windows & MAC
    Compatible Program: Web Browser: Internet Explorer, Google Chrome & Safari
    CMS Lite:: 32CH central management software for Windows OS
    QuickTime: For both Windows and MAC operating systems
    Max. online users: 20
    Web Transmitting Compression Format: H.264
    Network Live Audio: YES
    Remote Independent Operation: YES
    Remote Event Download & Playback: YES
    Mobile Surveillance: App EagleEyes
    Compatible Devices: iOS & Android devices
    Push Video: YES (16CH)
    Push Status: YES

    Others

    EaZy Networking: YES
    IVA: YES (4 channels in analog mode)
    DCCS Support: YES
    AVTECH Free DDNS service: YES
    Privacy Mask: YES
    Multiplex Operation: Live display / record / playback / backup / network operations
    System Recovery: System auto recovery after power failure
    Optional Peripherals: Disk Array (AVX997 / AVX992) / HDMI Matrix (HDM02) / USB Joystick (AVX102)
