AVM3445 - 3 Megapiksel, PoE, DWDR (2.8-12mm Motor)

Art. nr: 108002
På lager: Utgått produkt. Gå til erstattende produkt



Erstattet av AVM3443 - 3 Megapiksel, PoE, DWDR (2.8-12mm Manuell)

AVM3445 - 3 Megapiksel, PoE, DWDR (2.8-12mm Motorlinse)

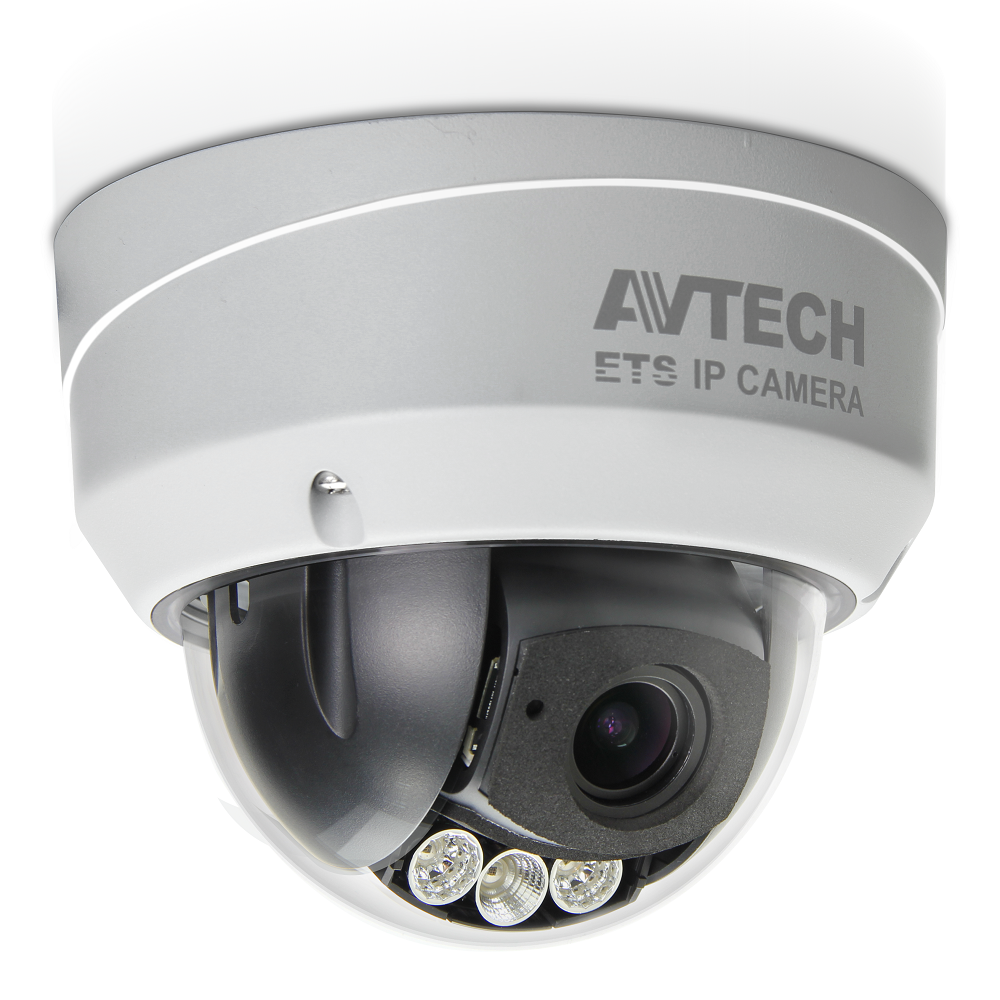

AVN3445 - Er en vandalsikker domekamera med 3 megapixels oppløsning som strømforsynes via PoE (Power over Ethernet) som betyr at kameraet strøm forsynes gjennom samme nettverkskabel som bilde/lyd går igjennom. AVM3445 tåler tøffe værforhold og har en IP-66 kapslingsklasse som beskytter så ikke støv og vann trenger inn i elektronikken.

Kameraet passer for bruk innendørs og utendørs og har en IK10 vandalsikker kapsling. Kameraet har en inngang og en utgang som sammen med våre push-video lagringsenheter/nvrer kan benyttes for å utløse en push-video. AVM3445 har IR-lys som når hele 50 meter i mørkret i enhanced mode og DWDR (Digital wide dynamic range) som er en motlysfunksjon. Les mer om de funksjoner som finnes gjennom å trykke på ikonene over. Kameraet er ONVIF-standard.

Nyhet - 3 Megapixels oppløsning (2048x1536)

Våre 3 megapixels kameraer (2048x1536) kan bare brukes med lagringsenhetene AVH408P og AVH504. For at 3 megapixel skal fungere i et eksisterende 2 megapixels anlegg må lagringsenheten oppdateres med en ny programvare og alle kameraer i systemet må også oppdateres.

EagleEyes

Med Avtechs App EagleEyes kan du enkelt overvåke/styre/aktivere innganger & utganger direkte på mobilen. Appen finnes tilgjengelig til alle typer mobiler (Iphone/Android/Blackberry)

VideoViewer

Med Avtechs PC/MAC program Videoviewer kan du enkelt overvåke/spille inn/spille opp/styra utganger & innganger og mye mer!

FEATURES

- Equipped with a vari-focal lens of f2.8 ~ 12 mm, focal length and focus adjustment could be made remotely.
- MicroSD card support (up to 64GB) for video storage.
- External alarm I/O device connection.
- POE (Power-over-Ethernet) support to eliminate the use of power cables and reduce installation costs.
- ONVIF standard supported to simplify system integration
- Solid Light series featuring better overexposure prevention (Advanced Smart Light Control), automatic adjustment of image brightness, and longer lifetime of LEDs.
- DWDR to increase image recognizability in overexposure and dark areas.
- IK10 rated, vandal-resistant case to withstand attempts to open or damage the camera.
- Line in / out jacks available for audio transmission.
- Waterproof design on the Ethernet cable connector.
- Remote Surveillance

-- Fully compatible with iOS and Android devices, and Internet Explorer on Windows operating system.
-- Free PC program, CMS Lite, for 24CH devices monitoring on Windows operating system.
-- Push Video available on your iOS and Android devices when used with Push Video NVR series.

SPECIFICATIONS

Network:

LAN Port YES
LAN Speed 10/100 Based-T Ethernet
Supported Protocols DDNS, PPPoE, DHCP, NTP, SNTP, TCP/IP, ICMP, SMTP, FTP, HTTP, RTP, RTSP,
RTCP,IPv4, Bonjour, UPnP, DNS,UDP,IGMP, QoS, SNMP
ONVIF Compatible YES (Profile S)
Number of Online Users 10
Security
(1) Multiple user access levels with password
(2) IP address filtering
(3) Digest authentication
Remote Access
(1) Internet Explorer on Windows operating system
(2) CMS Lite, 24CH CMS software for Windows operating system
(3) EagleEyes on iOS & Android mobile devices

Video:

Network Compression H.264 (Main Profile) / MJPEG
Video Resolution 2048 x 1536 / 1920 x 1080 / 1280 x 720 / 720 x 480 / 352 x 240
Frame Rate 30/25fps
Multiple Video Streaming 4 (H.264 /MJPEG)

General:

Image Sensor 1/ 2.8” SONY CMOS image sensor
Min Illumination 0.1 Lux / F1.4 ~ F2.8, 0 Lux (IR LED ON)
Shutter Speed 1/10,000 ~ 1/7.5 (Slow shutter)
S/N Ratio More than 48dB (AGC off)
Lens Motorized f2.8 ~ 12mm / F1.4 ~ F2.8
Viewing Angle
Wide: 94° (Horizontal) / 69° (Vertical) / 120° (Diagonal)
Tele: 29° (Horizontal) / 22° (Vertical) / 36° (Diagonal)
IR LED 3 Units
IR Effective Distance**
Default: up to 30 meters
IR Enhanced Mode: up to 50 meters
IR Shift YES
Smart Light Control YES
White Balance ATW
AGC Auto
IRIS Mode AES
DWDR YES
POE YES (IEEE 802.3af)
External Alarm I/O YES (1 input / 1 output)
RAM 20MB
MicroSD Card Slot YES (support up to 64GB microSD card)
Weather-proof IP66
Vandal-proof IK10
Operating Temperature -25℃ ~ 50℃
Operating Humidity Less than 60% relative humidity
Power Source (±10%) 12V / 1.5A
Net Weight (kg) 1.5

Audio:

Line in YES (Mono)
Line out YES (Mono)

Others:

Mobile Surveillance iOS & Android mobile devices
Motion Detection YES
Event Notification FTP / Email / SMS
Privacy Mask YES
RTC (real-time clock) YES
Digital Pan / Tilt / Zoom YES
Minimum Web Browsing Requirements
‧Intel core i3 or higher, or equivalent AMD
‧2GB RAM
‧AGP graphics card, Direct Draw, 32MB RAM
‧Windows 10, Windows 8, Windows 7, Windows Vista & Windows XP, DirectX 9.0 or later
‧Internet Explorer 7.x or later (Windows Edge not supported)
*The specifications are subject to change without notice.
** Using IR enhanced mode and slow shutter speed, the distance can be extended even longer.
DIMENSIONS
12.38cm
Dimensional tolerance: ± 5mm

OPTIONAL BRACKETS
AVM542-BKT(A), PAVM542-BKT(B), AVM542-BBKT
Used as a bracket to mount the camera on the ceiling and collect the cables.
