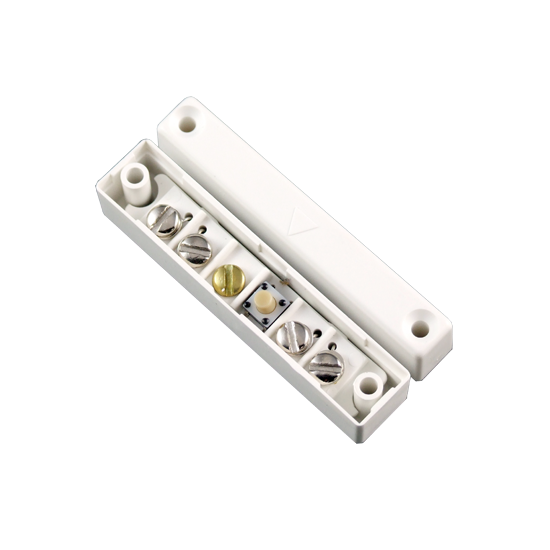

SC517/MULTI - Magnetkontakt, Grade 2 (NO/NC)
SC517/MULTI - Magnetkontakt, Grade 2 (NO/NC)
Utanpåliggende magnetkontakt som kan kobles NO eller NC. Mål: 65 x 13 x 13.
Data:
Material: Rhuthenium 3
Max. Contact Rating 3W
Max Switching Voltage: 100VDC
Max Switching Current: 0.25A
Max Initial Contact Resistance: 200mW
Operating Temperature: -40 C to +125 C
Housing
Material: Polystyrene
Contact Dimension (mm): 65 x 13 x 13
Contact Fixing (mm): 57 centres
Magnet Dimension (mm): 65 x 13 x 10
Magnet fixing (mm) 57 centres
Operating Temperature: -20 C to +50 C
SC517/MULTI - Magnetkontakt, Grade 2 (NO/NC)
Utanpåliggende magnetkontakt som kan kobles NO eller NC. Mål: 65 x 13 x 13.
Data:
Material: Rhuthenium 3
Max. Contact Rating 3W
Max Switching Voltage: 100VDC
Max Switching Current: 0.25A
Max Initial Contact Resistance: 200mW
Operating Temperature: -40 C to +125 C
Housing
Material: Polystyrene
Contact Dimension (mm): 65 x 13 x 13
Contact Fixing (mm): 57 centres
Magnet Dimension (mm): 65 x 13 x 10
Magnet fixing (mm) 57 centres
Operating Temperature: -20 C to +50 C
