Exit-knapp - Touch - Blå / Grønn LED.

Art. nr: 08569
Logg inn for å handle
Exit-knapp - Touch - Blå / Grön LED.

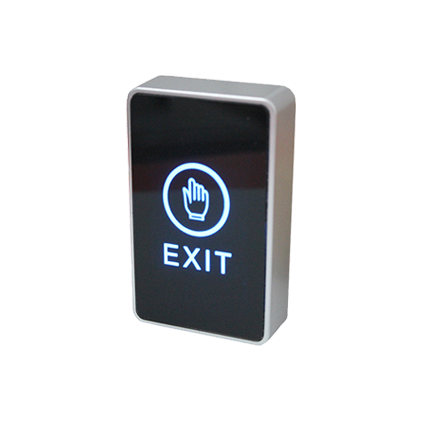

Touch Exit Button
> Touch letter button
> Stainless steel
> Installation: Surface mount
> Output contact: NO/NC/COM
> Blue LED indicator: standby
> Green LED indicator: active
> Dimension: 5.0W x 8.6H x 2.0D (cm)
Product Parameter: Parameter Description
Dimensions: 5.0W x 8.6H x 2.0D (cm)
Standard Structure: Stainless steel panel, touch button
Current Rating: 3A@12~24V DC MAX
Output Contact NO/NC/COM
Mechanical Life 500000 tested
Sensitive Distance: 5-15cm adjustable
Operating Temperature: -10 oC ~ 55 oC (14 oF ~ 131 oF)
Panel Material: Stainless steel panel, wire drawing finished
Weight: 0.095kg
Exit-knapp - Touch - Blå / Grön LED.
Touch Exit Button
> Touch letter button
> Stainless steel
> Installation: Surface mount
> Output contact: NO/NC/COM
> Blue LED indicator: standby
> Green LED indicator: active
> Dimension: 5.0W x 8.6H x 2.0D (cm)
Product Parameter: Parameter Description
Dimensions: 5.0W x 8.6H x 2.0D (cm)
Standard Structure: Stainless steel panel, touch button
Current Rating: 3A@12~24V DC MAX
Output Contact NO/NC/COM
Mechanical Life 500000 tested
Sensitive Distance: 5-15cm adjustable
Operating Temperature: -10 oC ~ 55 oC (14 oF ~ 131 oF)
Panel Material: Stainless steel panel, wire drawing finished
Weight: 0.095kg
