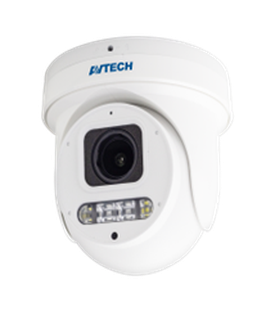

DGM5907SVSGAT PTZ, IP kamera, 5 MP

Art. nr: 108136
Logg inn for å handle

Device

Image Sensor 1/2.8” SONY CMOS

Max. Resolution 2560 x 1944

Lens f2.7 ~ 13.5mm / F1.6 ~ F2.2

Viewing Angle Tele 40˚ ~ Wide 117˚ (Diagonal)

Min Illumination 0.001 Lux (IR LED off), 0 Lux (IR LED on)

Shutter Speed AUTO, 1/25s ~ 1/100000s

LED 4 dual light (IR & warm) units

IR Effective Distance Up to 50 meters

Day / Night YES

WDR Mode YES (120dB)

RTC (real-time clock) YES

MicroSD Card Slot YES (up to 256GB)

▓ Video

Compression H265 / H.264

Video Resolution Main Stream 5MP (2592x1944) / 4MP (2560x1440) / 3MP (2304x1296) / 2MP (1080P) / 720P

 Sub Stream D1 / VGA / 640x360 / 480x360 / CIF

Frame Rate 5MP @ 25FPS

Video Profile High profile / Main profile / Base profile

Multiple Video Streaming 2 streams

Bitrate Control 512Kbps - 12Mbps、VBR/CBR

Image Enhancement WDR / BLC / HLC / 2D DNR / 3D DNR / AWB / MWB / AGC

Day / Night Switch Auto / Color / (B/W) / Timing

Forced Anti-flicker YES

Defog YES

White Balance Auto / Manual

Image Orientation Rotate / Mirror

Privacy Mask YES

Text Overlay YES

OSD Title Location / font size / text configurable; text input (English & Chinese characters) and image

upload (BMP) supported

▓ Audio

Microphone built-in YES

Speaker built-in YES

Encoding G.711-u / G.711-a

Audio Adjustment YES

▓ Alarm & Event

Detection Mode Motion / Human / Vehicle Detection

Detection Schedule YES

Motion Detection Area 1x1, 2x2, 3x2, 3x3, 4x3, 4x4, 8x8, 16x16, 22x18

Detection Alert Audio alert with customized mp3 audio file(s)
