HAA9350 - Kodelås utendørs IP66, 2 reler (125x79x54 mm)

Art. nr: 08531
På lager: Utgått produkt. Gå til erstattende produkt

HAA9350 - Kodelås utendørs IP66, 2 releer (125x79x54 mm)

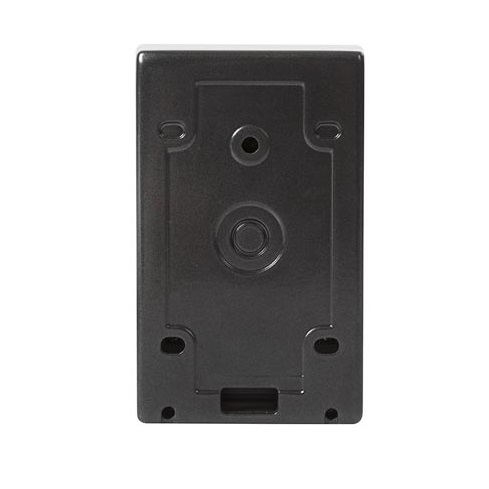

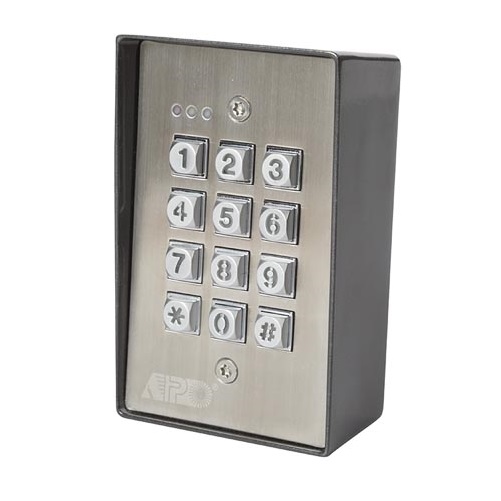

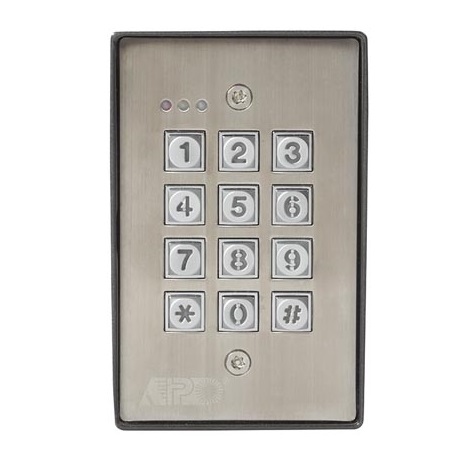

HAA9350 er ett kodelås for montering utendørs eller innendørs. Kodelåset har 2 releutganger der rele 1 kan styres med 100 koder og rele 2 10 koder. Kodelåset har en svart bakboks. IP66.

Funksjoner:

Opplyste metallknapper.
1,5 mm rustfritt stål front.
Vandalsikker og vannsikker med IP65
Antallkoder rele 1: 100
Antall koder rele 2: 10
Rele 1: 5A NO/NC
Rele 2: 1A aux NO/NC
Strømforsyning: 12VDC eller 24VAC (ikke inkl)
Mål: 125x 79 x 54
Børstet front.
Over 100 millioner kominasjoner med 4-8 siffer.
Singel lock / Interlock installasjon
Auto eller manual code entry.
Utenpåliggende eller innfeldt

Data:

Operation Voltage: 12-24V AC/DC, full voltage range
Operation Current:

- Quiescent - 16mA
- Maximum - 78mA (Relays operating)

Operation Modes:

a) Multi User Mode

-- 100 user codes for output 1 (user number 00-99), Auto or Manual Code Entry
-- 10 user codes for output 2 (user number 0-9), Auto or Manual Code Entry
b) Single User Mode

-- 1 user code for each output and the special functions, Auto or Manual Code Entry

User Code Combinations:

a) Single User Mode -- 10,000 (User Code fixed at 4 digits)
b) Multi User Mode -- 110,000,000 (User Code 4-8 digits programmable)

Input Sensing Terminals:

a) Egress Input -- Normally open referring to (–) ground
b) Door Position Sensor Input -- Normally closed referring to (–) ground
c) Output 1 Stop Control -- Normally open referring to (–) ground

Output Contacts:

OUTPUT 1 : Normally Closed and Normally Open Dry Contacts, 5A / 24VDC Max. Rating
OUTPUT 2 : Normally Closed and Normally Open Dry Contacts, 1A / 24VDC Max. Rating

Tamper Switch Contact:

Normally Closed Dry Contact, 50mA / 24VDC Max.

Duress, Inter-lock & Key Active Output Rating:

NPN Open Collector switches to ground when active, 24VDC / 100mA Sink

Auto Refreshing Time During Code Entry:

a) Eash Digit Maximum Entry Time Limit -- 10 seconds
b) Eash Code Maximum Entry Time Limit -- 30 seconds

Weatherproof:

IP-66

Operation Temperature:

-20°C to +70°C

Ambient Humidity:

5-95% relative humidity (non-condensing)

Dimensions:

DK-9350 --- 125(H) X 79(W) X 46/54(D)mm

Weight:

DK-9350 --- 530g net

Housing:

DK-9350 --- Cast Aluminum, Powder paint coa�ng, 1.5mm Stainless steel
