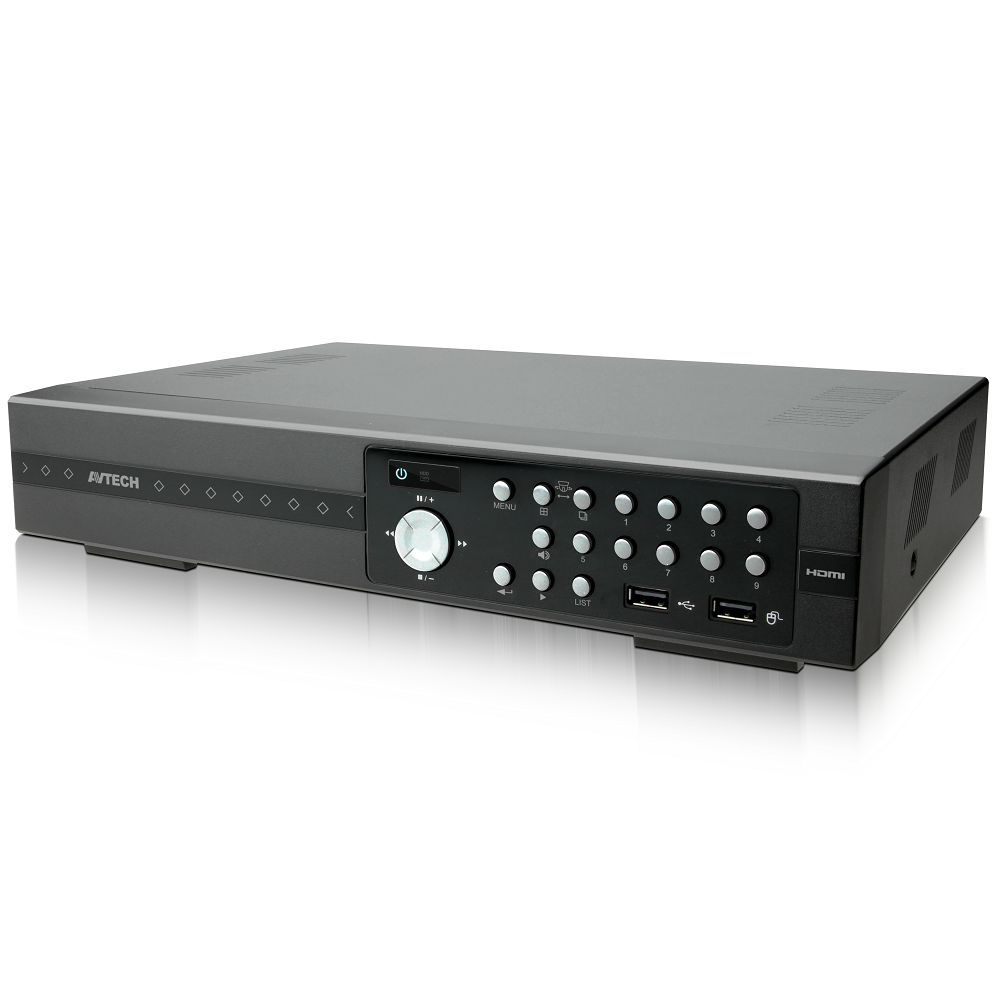

AVZ308 8 Kanals Full HD DVR - 8 Analoge kameraer + 1 IP.

Art. nr: 107617
På lager: Utgått produkt. Gå til erstattende produkt



AVZ308 8 Kanals DVR + 1 IP kamera, Push-status, Push video (FULL-HD)

NY DVR med mulighet å ha 1 stk IP kamera + 8 analaoge HD kameraer. AVZ308 har alle funksjonene som de gamle analoge lagringsenhetene har, men har også push status, push video og eazy-network (P2P). AVTECHS nye analoge overvåkingskameraer og DVRer er designet for de som ønsker å oppgradere sine kamerasystem, men beholde sin gamle koaksiale kabling. Har du et gammelt 300-700 TVL system kan du ikke bruke samme kameraer men du kan nå bruke samme kabling men med våre nye kameraer og DVR få 2 megapixels oppløsning. AVZ308 er en DVR som kan ha totalt 8 analoge kameraer tilkoplet + 1 IP kamera. Lagringsenheten takler kameraer med analog HD, TVI & 960H oppløsning.

Funksjoner:

- Free P2P Cloud EaZy Networking* Push Video & Push Status.
- Active Event Notification with EagleEyes App.
- Intelligent Video Analysis,  Pentabrid Video Input.
- Supports 8 channels of IP / TVI / CVI / Analog HD /960H video input + one more channel of IP video input.

Raskere responstid enn IP-basert system

En annen grunn til å velge HD CCTV systemet er responstiden som er lavere enn et IP-basert system. En IP-kamera har en responstid på 0,5-1 sekunder mens et analogt kamera bare 0,2-0,5 sekunder. Det betyr at fabrikker, produksjoner og lignende der noen overvåker "live" bør velge en HD-CCTV/ITV-system.

Harddisk må bestilles separat.

DVR

Video System NTSC / PAL (auto detection)
Video Compression Format H.264
Video Signal IP / TVI / CVI / Analog HD / 960H
Video Input 8 quadbrid channels + 1 IP channel
Video Input Interface Analog Mode Composite video signal 1 Vp-p 75Ω BNC
IP Mode Ethernet, 10/100 Base-T
Video Output BNC YES (Spot Monitor supported)
VGA YES
HDMI YES
Video Resolution Analog Mode 1080P / 720P / QHD / 960H / Frame / Field / CIF
IP Mode
Live & Playback:
1920 x 1080 / 1280 x 720 / 640 x 480 / 320 x 240
Record**:
2592 x 1944 / 2048 x 1536 / 1920 x 1080 / 1280 x 720/ 640 x 480 / 320 x 240

Record & Backup

Max. Recording Rate
Analog Mode
Up to 120 IPS @ 1920 x 1080 (8 channels)
Up to 240 IPS @ 1280 x 720 (8 channels)
IP Mode UP to 270 IPS @ 1920 x 1080 (9 channels)
Recording Mode Manual / Timer / Motion / Alarm / Remote
Pre-alarm Recording YES
Playback Channel 9CH
Quick Search Time / Motion / Alarm search mode
Backup Device USB 2.0 drive / Network
Regular Backup YES

Audio

Audio Input 1 audio input
Audio Output 1 audio output (Mono)

General

Hard Disk Storage 10TB SATA HDD x 2
SATA Interface YES
eSATA Interface YES (For external disk array connection)
Image Quality Setting SUPER BEST / BEST / HIGH / NORMAL
USB Mouse Control YES
Motion Detection Area 16 × 12 grids per channel
Motion Detection Sensitivity 3 adjustable parameters for accurate detection
Event Notification Push Video / Push Status / FTP / E-Mail
Picture Zoom 2X digital zoom
PTZ Control YES
Alarm I/O 4 inputs, 1 output
RS485 YES
IR Remote Control YES (IR receiver built-in)
Key Lock (Password Protection) YES
User Level 4 user levels for different access privilege
Video Loss Detection YES
Camera Title Supports up to 25 letters
Video Adjustable Hue / Saturation / Contrast / Brightness
Date Display Format YY/MM/DD, DD/MM/YY & MM/DD/YY
Daylight Saving YES
Net Weight (kg) 2.17
Power Source (±10%) DC12V / 3A
Operating Temperature 10ºC ~ 40ºC (50ºF ~104ºF)
Operating Humidity 10% ~ 85%
Dimensions (mm)*** 345(W) x 68.3(H) x 225(D)
Net Weight (kg) 2.17

Network

Ethernet 10/100 Base-T. Supports remote control and live view via Ethernet
Network Protocol TCP/IP, PPPOE, DHCP and DDNS

Remote Surveillance from PC

Compatible Operating System Windows & MAC
Compatible Program Web Browser: Internet Explorer, Google Chrome & Safari
CMS Lite: 32CH central management software for Windows OS
QuickTime: For both Windows and MAC operating systems
Max. online users 20
Web Transmitting Compression Format H.264
Network Live Audio YES
Remote Independent Operation YES
Remote Event Download & Playback YES

Mobile Surveillance

App EagleEyes
Compatible Devices iOS & Android devices
Push Video YES (9CH)
Push Status YES

Others

EaZy Networking YES
IVA**** YES (4 channels in analog mode)
DCCS Support YES
AVTECH Free DDNS service YES
Privacy Mask YES
Multiplex Operation Live display / record / playback / backup / network operations
System Recovery System auto recovery after power failure
Optional Peripherals Disk Array (AVX997 / AVX992) / HDMI Matrix (HDM02) / USB Joystick (AVX102)
* The specifications are subject to change without notice.
** To see 5MP video playback, you need to backup the footage and play on PC.
** Dimensional tolerance: ±5mm
