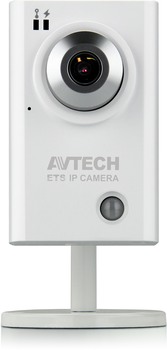

AVM302A- 1,3 Megapiksel - POE, SD, I/O, (Innebygget IR)
AVM302A er et Innendørs IP kamera med 1,3 MP og POE. Kamera har en innebygget IR detektor som kan brukes til aktivering av opptak eller aktivering av Pushvarsling når den er montert sammen med AVH312.
Braketten er fleksibel slik at kamera både kan veggmonteres og takmonteres.
General
Image Sensor 1/4" SONY CMOS image sensor
Min. Illumination 0.1 Lux / F1.5
S/N Ratio More than 48dB (AGC off)
Electronic Shutter 1/2 to 1/10,000 sec
Lens f3.8mm / F1.5
Viewing Angle 62.7° (Diagonal) / 53.7° (Horizontal) / 34.1° (Vertical)
IR Effective Range N/A
PIR Sensor Detection Range 76° wide angle with up to 6m long distance at 2m height (under 30°C)
IRIS Mode AES
White Balance ATW
AGC Auto
Operating Temperature 0℃~40℃
Power Source (±10%) 12V / 1A
Current Consumption (±10%) 0.25A
Video
Video Compression H.264 / MPEG4 / MJPEG
Resolution SXGA / 720P / VGA / QVGA
Frame Rate NTSC:30 / PAL:25
Multiple Video Streaming 3 (H.264, MJPEG, MPEG4)
Audio
Microphone Yes
Network
Number of Online Users 1-10
Supported Protocols DDNS / PPPoE / DHCP / NTP / SNTP / TCP/IP / ICMP / SMTP / FTP / HTTP / RTP / RTSP / UPnP
LAN Speed 10/100 Based-T Ethernet
LAN Port Yes
Security
Multiple user access levels with password
IP address filtering
Digest authentication
Remote Access
Modern Web browser
EagleEyes Mobile App
Others
Mobile Surveillance Android / iOS
ONVIF Compatible Yes
POE (Power-over-Ethernet) Yes (IEEE 802.3af)
Event Notification FTP / Email
External Alarm Device Connection Yes
Digital Pan / Tilt / Zoom Yes
Motion Detection Yes
RTC (real-time clock) Yes
Minimum System Requirements
Pentium 4 CPU 1.3 GHz or higher, or equivalent AMD
256 MB RAM
AGP graphics card, Direct Draw, 32MB RAM
Windows 7, Vista & XP, DirectX 9.0 or later
Internet Explorer 7.x or later
Note Human detection sensor built-in / microSD card slo
